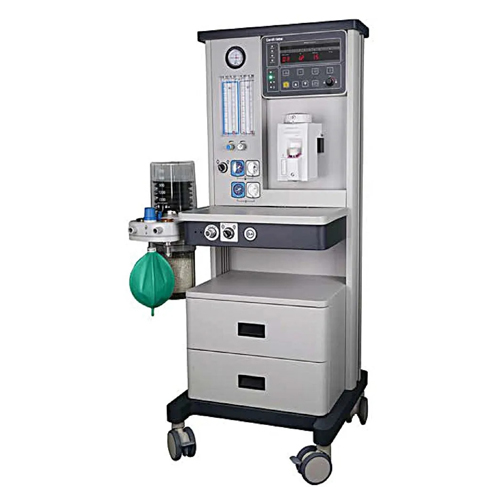

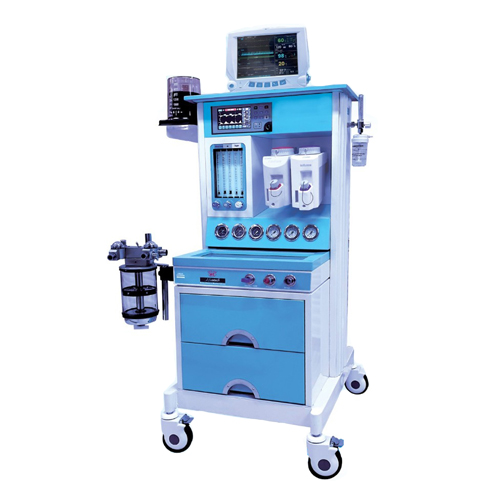

STANDARD FEATURES:

• 5" Touch Screen
• 2 Gas System
• VCV Mode
• 3 Hours Battery Back Up

• Stand alone easy to use anesthesia machine with provision for 0₂ & N₂0.
• Unique inbuilt system to guide the initial setting of inspiratory flow.
• Bar graph displays dynamic airway pressure showing upper and lower pressure limits.
• Switchable Auxiliary Common gas outlet ACGO.
• Inbuild pin index Yokes for 0₂ & N₂0.
• Inbuild Dual Drawers with big storage space.
• Integrated circle observer (1.5) with APL Valve and manual/vent switch.
• Control to ensure accurate ventilation delivery from 20ml-2000ml.
• Emergency 0₂ flush flow between 35 to 70 LPM.
• Lithium Ion battery backup 3 hours.
• Built-in audio visual alarm.
• Settable parameters-BPM, I:E ratio and pressure limits, Inspiratory flow rates.

• Three Gas anaesthesia machine O₂, N₂O & AIR with 5 tube cascaded rotameter Low & High flow anaesthesia gas delivery system inter locking facility between Air & N₂O gas flow..
• Ensures no N₂O gas flow if O₂ flow is lower than 0.5 ltr/min Minimum 25 (±5%) oxygen in surgery gas mixture. Ratio control 1:3 mixed ratio between O₂ & N₂0 gas flow.
• 0₂ & N₂0 each 2 no & AIR 1 no. Pin index gas cylinder connection for O₂ & N₂O each 1 no & diameter index gas specific central pipe line connection 1no. Each for O₂, N₂0 & Air pin indexing compact yoke made of brass with stainless steel accessories.
• OFWD: Inbuilt audio visual oxygen failure alarm.
• REGULATORS: High efficiency forged single stage regulators.
• NRV: High precision pressure relief cum non return valve
• Change over mechanism with Open & Close Circuit interchangeable facility.
• GAUGE: Large diameter 63mm Panel Mounted cylinder pressure display gauges, 50mm diameter gas operating pressure & pipeline pressure display gauges.
• GAS OUTLET PORT: 4 bar diameter index Oxygen outlet port for driving ventilator
• ELECTRICAL POWER POINT: 6amp three pin socket 2 nos with MCB.
• CASTOR WHEEL: Antistatic break system castor wheels.
• 7” TFT with Touch Screen Display, OPERATING MODE: CMV, ACMV, SIMV, PLV, BAG & STANDBY, TIDAL VOLUME: 50-1500 ml, BPM: Breaths per min 6-40 BPM, SIMV RATE: 1 to 39 BPM, I:E RATIO: 1:4, 4:1, TRIGGER: 1-9cm H₂O, MONITORING FACTORS: Tidal volume, Minute volume, RR, FiO₂, PEEP obtained, ALARMS: Pressure low & high, RR low & high, FiO₂ low & high, active patient, driving gas failure, low battery, circuit disconnect, minute volume low & high, BATTERY BACKUP: 2 hours.

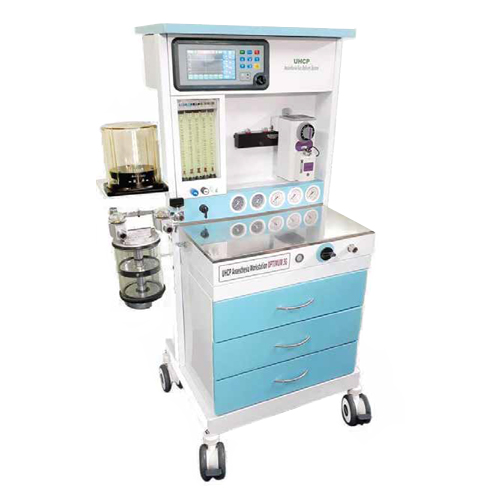

STANDARD FEATURES:

• Suitable for Adult & Paediatric.
• 7" TFT Screen with Touch Display.
• Microprocessor based pneumatically Operated Integrated Anesthesia ventilator.
• Twin Cascaded Rotameter Two Each for O₂, N₂O and single for Air.

• Compatible with both 'A' type & 'B' type Cylinder and Central Gas Supply.
• Oxygen Flowmeter for Independent oxygen supply.
• Goldman type Halothane Vaporizer and Single vaporize station (optional)
• Changeover System for Open/Bains Circuit to closed circuit.
• Contemporary and ergonomic design, easy to operate and user friendly.

STANDARD FEATURES:

• Display type: 8 Inch TFT with 9 keys
• Internal Battery Backup: 3hrs
• Power Supply: AC 100~240±10%, 50/60 Hz,1A,100VA
• Pipeline Gas Supply: O₂, N₂O (0.23 Mpa~0.6 Mpa)

• Cylinder Gas Supply: O₂, N₂O (Pin indexed yokes)
• Flow Meter: Cascade Flow Meter for O₂, N₂O
• Oxygen & N₂O: Low Flow - 0.1~1.0 lpm / High Flow - 1~10 lpm
• Patient Type: Adult & Paediatric
• Modes: VCV, SIMV-VC, Manual & ACGO
• Tidal Volume (VT): 50ml - 1500ml
• Frequency (f): 1-100 BPM
• PEEP: 3-20
• Monitoring Parameters: Ppeak, TVe, Freq, PEEP, MV, FiO₂
• Waveforms: P-T,F-T, V-T
• Vaporizer: Halothane,Isoflurance,Sevoflorane Pour-fill, Easy-fill, Quick-fill
• Hypoxic guard system: Mechanical type provides minimum 25% concentration of O₂ in O₂/N₂O mixture

STANDARD FEATURES:

• Three Gas Anaesthesia Machine with provision for O2, N2O & Air.
• Main Driving gas can be air, hence reduce running cost of oxygen.
• Smart Gas Shift Technology: In case main Air gas fails, auto shift to secondary gas O2.
• Five Tube flow meter assembly with Anti Hypoxia Guard with N2O shut off in case O2 fail.

• Advance ventilator with full range of modes VCV, PCV, SIMV, PSV, Manual, Standby.
• 9 Inch Color Touch screen for display waveforms (PT, FT, VT) & Loops (PV, FV)
• Advanced proportional valve technology with tidal Volume compensation & precise flow
• Control to ensure accurate ventilation delivery from 20ml-2000ml
• Lithium Ion Battery backup 3 hours
• Electronic PEEP & Fio2 Monitoring
• Switchable Auxiliary Common gas outlet ACGO)
• Emergency oxygen flush flow between 35 to 70 LMP
• Twin Selectatec type vaporizers manifold with interlock system
• Inbuilt Pin Index Yokes for O2 & N2O
• Inbuilt Dual Drawers with big storage space
• Integrated circle observer (1.5 L) with APL Valve and manual/Vent switch
