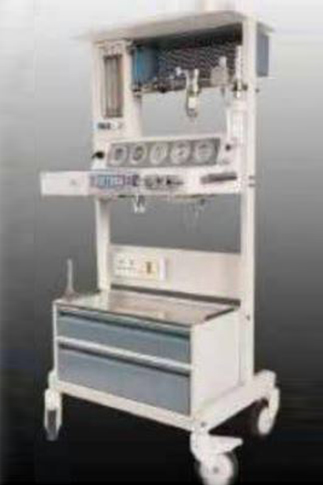

• THREE Gases Anaesthesia machine O2 , N2o & Air three tubes
• Trolley made of M.S. multi colour Powder Coated finish with anti rust lacquer coating
• Gas Inlet Port O2 & N2 Each 2 nos. & Air 1 No. Pin-indexed gas cylinder Connections for O2 & N2O each 1nos. & diameter index gas specific Central Pipe Line Connection each 1No.for O2 , N2O, Air
• Nitro-locking System
• Audio Visual Oxygen Failure Alarm(OFWD)
• Interlocking facilitybetween Air & N2O gas Flow.
• High efficiency Forged single stage & double stage pressure Regulators
• High precision pressure relief cum non-return valve.
• Oxygen Out let Port for driving ventilator.
• Electrical Power Point,15 amp three pin socket 2 nos with MCB
• Antistatic Brakesystem castor wheels.
• Baines Circuit (Adult) with APL valve
• Size: 1425mm X 660 mm X 560 mm (H x W x D)

• Anti Hypoxic pneumatic device,Ensures no nitrous oxide flow, if oxygen flow is lower than 0.5 ltr/min approx.. Minimum 25% (5%) oxygen in surgery gas mixture
• Ratio control 1:3 mixed ratio between O2 & N2O gas flow.
• Rotameter 9”ISI & ISO Standard
• Oxygen driven N2O supply.
• Audio visual oxy failure warming device (OFWD).
• Higher efficiency forged regulators & yokes with stainless steel fittings.
• Higher precision pressure relief cum non return valve
• Goldman Halothane Vaporizers.
• Change over mechanism with oxygen flush (open & close circuit).
• Standard Magill’s circuit, all rubber antistatic tested
• 5” dia antistatic braking castor wheel.
• Oxygen outlet for driving ventilator
• 10 litre W/C cylinder carrier facility
• Size 1585 mm X 860 mm X 735 mm (H x W x D)

• Oxy Failure Warning Device (OFWD)
• Oxygen driven N2O supply
• High precision pressure relief cum non return valve
• Rotameter unit 9” ISI & ISO Standard
• Goldman Halothane Vaporizers.
• Pin-indexed gas inlet port:- Oxygen & Nitrous- oxide each 2 numbers.
• Standard Magill’s Circuit, All rubber antistatic tested.
• 5” dia antistatic braking castor wheel.
• Oxygen outlet for driving ventilator (Double)
• 10 litre W/C cylinder carrier facility
• Size 1520 mm X 825 mm X 645 mm (H x W x D)

" ECO " incorporates an self actuated oxygen failure warning system ,as standard. The twin uprights support the console back bar and top shelf assembly. A drawer is attached to the frame. The anaesthesia machine is finished in high quality paint to produce an unit that conforms to all standard safety features.

• Trolley made of M.S. multi colour powder coated finish
• 9” Length Rotameter unit ISI & ISO Standard
• Pin indexing cylinder connection for O2 & N2O each One Nos. and one no. ‘B’ type cylinder or Central gas pipe line connection for O2 Nitrous oxide locking System.
• Pressure relief cum non return valve with Oxygen Flush.
• Standard Magill’s circuit.
• 10 Ltrs. W/C cylinder carrier facilities
• Pressure Gauges 50 mm Dia
• Higher Efficiency forged Regulators
• Single Drawer
• Monitoring top tray Size 1500 mm X 650 mm X 465 mm (H x W x D)

• Delivers accurate concentrations under varying conditions of flow rate and temperature, particularly at low flow (with flow & temperature compensation)
• Agent options for Halothane, Isoflurane & Sevoflurane.
• Filling options are available with pour Fill, Key Fill, Easy Fill & Quik Fil (sevoflurane)
• Compatible with selectatec backbar with interlock, cage mount and Draeger mount
• Calibration & Testing done as per EN ISO 8835 - 4
