Diathermy 400 Watt and 250 Watt

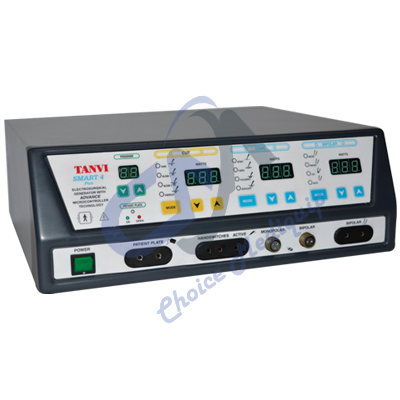

SMART 4
Smart 4 is a micro processor controlled based model for
surgeries such as Electro vaporization Gastroenterology, cardiology, Proctology, Gynecology, Urology, Neurology, Orthopaedics & many other type of surgeries.
SALIENT FEATURES:
- Digital Power adjustment for separate modes
- Feather touch Keys are used for power setting levels
in all operating mode
- Audio visual alarm for disconnecting of patient plate
- Tissue Response circuit is provided
- Program selector switch is provided
Technical Specifications:
- Operating Frequency : 500 KHZ
- Power Supply : 230 V AC, 50 Hz
- Dimensions : L40 x B35.5 x H13.6cms
- Weight : 6.5 Kgs
Output Characteristics
| MODE |
MAXIMUM POWER (WATTS) |
| Mono-polar Cut |
Pure cut |
400 |
| Blend-1 |
250 |
| Blend-2 |
250 |
| Endo cut |
99 |
| Mono-polar Coag |
Spray |
120 |
| Fulgurate |
150 |
| Desiccate |
150 |
| Bio-polar |
Macro |
80 |
| Micro |
80 |
| Bio-Cut |
80 |

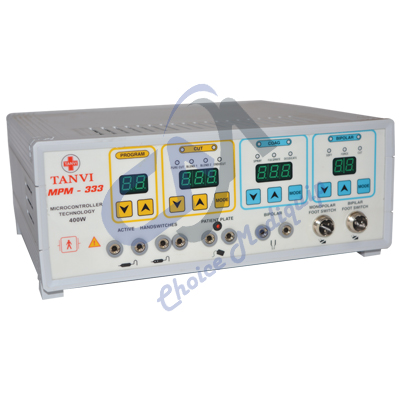

MPM 333
Tanvi MPM 333 is micro controller based model for
surgeries such as Electrovapourization Gastroenterology, Cardiology, Proctology, Gynaecology, Urology, Neurology, Orthopaedics & many other types of surgeries.
SALIENT FEATURES:
- Digital Power adjustment for separate modes
- Feather touch keys are used for power setting levels
in all operating mode
- Audio visual alarm for disconnecting of patient plate
- Tissue Response circuit is provided
- Program selector switch is provided
Technical Specifications:
- Operating Frequency : 500 KHZ
- Power Supply : 230V AC, 50 Hz
- Dimensions : L26 X B29 X H10cms
- Weight : 3.5 Kgs
Output Characteristics
| MODE |
MAXIMUM POWER (WATTS) |
| Monopolar Cut |
Pure cut |
400 |
| Blend-1 |
250 |
| Blend-2 |
250 |
| Endo cut |
99 |
| Monopolar Coag |
Spray |
120 |
| Fulgurate |
150 |
| Desiccate |
150 |
| Biopolar |
Macro |
80 |
| Micro |
80 |
| Bio-Cut |
80 |
AYU - 250W ECO
AYU 250 ECO DIGITAL ELECTRO SURGICAL UNIT is high frequency
Electro Surgical unit Microcontroller based innovative
design, together With high reliability makes AYU 250 Eco
digital Electro Surgical Diathermy unit the most favorable
choice for doctors. The technical Ability of the unit is
combined with patient safety are pf prime Importance both
for the patient and the user. The AYU 250 Eco Digital
Electro Surgical Diathermy is designed with SMPS power
supply provides Particular safety and reliability AYU 250
Eco is user friendly electro Surgical unit.
Output Characteristics
| MODE |
RATED LOAD (OHMS) |
MAXIMUM POWER (WATTS) |
| Monopolar Cut |
PURE |
300 |
250 |
| BLEND |
300 |
180 |
| Monopolar Coag |
DESICCATE |
300 |
150 |
| FULGURATE |
300 |
180 |
| Bipolar Cut |
PURE |
100 |
100 |
| BLEND |
100 |
70 |
| Bipolar Coag. |
DESICCATE |
100 |
50 |
| FULGURATE |
100 |
70 |
AYU - 400W MAXI / MICRO
AYU 400 MAX/MICRO DIGITAL ELECTRO SURGICAL UNIT is high
Frequency unit with Separate Bipolar Footswitch, Micro
controller Based innovative design, together with high
reliability makes AYU 400 MAX/Micro digital Electro Surgical
Diathermy unit the most favorable Choice for doctors .the
technical ability of the unit is combine with Patient safety
are of prime important both for the patient and the user.
The AYU 400 Maxi/Micro Digital Electro Surgical Diathermy is
designed With SMPS power provides particular safety and
reliability .AYU 400 Maxi/Micro is user friendly electro
surgical unit.
Output Characteristics
| MODE |
RATED LOAD (OHMS) |
MAXIMUM POWER (WATTS) |
| Monopolar Cut |
PURE |
300 |
400 |
| BLEND |
300 |
300 |
| Monopolar Coag. |
DESICCATE |
300 |
150 |
| FULGURATE |
300 |
250 |
| SPRAYCUT |
300 |
120 |
| Bipolar Cut |
PURE |
100 |
100 |
| BLEND |
100 |
70 |
| Bipolar Coag. |
CUT |
100 |
100 |
| COAG |
120 |
100 |
Output Characteristics MICRO
| MODE |
RATED LOAD (OHMS) |
MAXIMUM POWER (WATTS) |
| Monopolar Cut |
PURE |
300 |
400 |
| BLEND |
300 |
300 |
| Monopolar Coag. |
DESICCATE |
300 |
150 |
| FULGURATE |
300 |
250 |
| Bipolar Cut |
CUT |
100 |
100 |
| COAG |
100 |
70 |
