Clarity Medical’s Spectra Gold vital sign monitor is at the top end of vital sign bedside monitors category. It can be customized to user requirements with different screen options (standard or touchscreen), and the parameters needed. It boasts a 15” color TFT (touchscreen optional) screen, a large battery backup, and is able to measure up to 9 distinct parameters: SpO2 , Heart rate, ECG/EKG, Respiratory rate, NiBP, IBP (used during surgery), EtCO2 (capnography), Temperature, CO (cardiac output) and BIS (Bispectral index). This monitor has real time remote viewing capability with 2-way communication.

• 15” Large TFT (Touch Screen Optional)bright resolution for beter visibility
• 8 real time configurable display
• Single knob to browse menus/sub menus
• Design facilitates transit monitoring
• Big font for better viewing from a distance
• Both Audio and Visual Alarms for vital signs

Clarity Medical’s Spectra Smart+ vital sign monitor is fully customizable to user requirements. The Spectra Smart+ boasts a 12” color TFT screen, a large battery backup, and is capable of measuring up to 7 distinct parameters: SpO2 , ECG/EKG, Respiratory rate, NiBP, IBP (used during surgery), EtCO2 (capnography) and Temperature. This monitor has real time remote viewing capability with 2-way communication.

• 12.1” Large TFT bright resolution for beter visibility
• Single knob to browse menus/sub menus
• Multi colour LED for different alarm modes
• 800 x 600 resolution with clear wave form and easy to read numeric values
• Upto 8 real time wave forms display
• Capability upto 7 Parameters – ECG, SpO2, NiBP, Respiration, Temperature-2Ch, EtCO2, IBP Single/Dual, Triple Ch (Optional)

Clarity Medical’s Spectra Slim+ vital sign monitor is fully customizable to user requirements. The Spectra Slim+ boasts a 10” color TFT screen, a large battery backup, and is able to measure up to 7 distinct parameters: SpO2 , ECG/EKG, Respiratory rate, NiBP, IBP (used during surgery), EtCO2 (capnography) and Temperature. This monitor has real time remote viewing capability with 2-way communication.

• 10.4” Large TFT bright resolution for beter visibility
• 800 x 600 resolution
• Single knob to browse menus/sub menus
• Night mode for patient comfort and to enhance TFT file
• Multi colour LED for different alarm modes
• Capability upto 7 Parameters – ECG,SpO2,NiBP, Respiration, Temperature-2Ch, EtCO2, IBP Single / Dual , Triple Ch (Optional)
• Indicators for Mains, Battery and Charging

• 7” colour TFT Display (800 x 400 resolution)
• Capability upto 5 Parameters – ECG, SpO2, NiBP, Respiration, Temperature-1Ch, Optional for EtCO2 module with any other one of the parameter.
• Both Audio and Visual Alarms for vital signs
• Easy to learn and use with single knob to browse through all menus

Recobro Vigile is a highly miniaturized ICU and OT/OR grade multi-parameter vital sign monitor with wireless communication. Device measures up to 7 vital signs and transmits patient data directly to the physician’s smartphone using Clarity's MyTelePatient mobile app. Long battery life and hot swapping feature ensures round-the-clock uninterrupted patient monitoring. Used in hospital settings, ambulances, emergency response services, and home care of patients who need constant monitoring.

• 2.4” Colour bright LCD Display with vital sign values
• Available parameters are ECG, SpO2, NiBP, IBP, Temperature, Respiration, EtCO2(Mainstream), Invasive Cardiac Output
• Compact and easy to handle
• Ambulatory patient care like never before
• Rechargable battery with Hot swappable feature enables uninterrupted monitoring

A pulse oximeter is a non-invasive device used to measure a patient’s oxygen saturation and heart rate. The OxyPlus 240ST pulse oximeter is equipped with Clarity Medical’s proprietary motion tolerance and smart artefact rejection technology that rivals that of the best brands in the world. Coupled with a lightweight design, long battery life and up to 48 hours of SpO 2 and HR trend storage, the OxyPlus 240ST is perfect for all your portable pulse oximetry needs.

• User friendly all functions accessible through seven button keypad
• Bright LEDs indicate important functions and settings
• LCD Display for Pleth, O2, HR Values
• Light weight and portable monitor
• Built in Rechargable Li-ion battery

Electrocardiograph machines record the electrical activity of the heart. The ECG 100,equipped with Clarity Medical’s proprietary TISA interpretation technology, is a standalone 12-lead ECG machine offering of Clarity Medical. The ECG 100 is available in 4 and 6 channel variants.

• Personalised tracings with user’s name (user editable)
• Excellent recording quality with it’s high resolution printer
• 4 or 6 channel print format
• Detailed interpretation package
• Quantitative analysis of the tracings

Electrocardiograph machines record the electrical activity of the heart. The TrueBeat 100, equipped with Clarity Medical's proprietary TISA interpretation technology, is a high end standalone 12-lead ECG machine. Available in 3, 4 and 6 channel variants. Click on the description tab below for additional information.

• 3.5” colour TFT Display with Touch Screen
• Compact and Portable
• Detailed interpretation package
• 3/4/6 Channel print format

AVAILABLE MODELS :

TrueBeat 100-F – 3Ch Printout, Memory Storage
TrueBeat 100 G – 4Ch Printout, Memory Storage

Electrocardiograph machines record the electrical activity of the heart. The TrueBeat 200 is Clarity Medical’s flagship ECG offering. It is a standalone 12-lead ECG machine equipped with proprietary TISA interpretation technology, and boasts several high end features: a large high resolution TFT/LCD touchscreen, splash-resistant keyboard, and built-in 300 dpi A4 size thermal printer. Available in 6 and 12 channel variants. Click on the description tab below for additional information.

• Colour TFT Display 7” (800 x 480 resolution)
• Selectable display formats
• Splash-resistant alphanumeric keyboard and direct function keys
• Automatic and Manual mode operation
• 12 leads simultaneous recording I, II, III , aVR, aVL, and V1, V6, Pre Cordials
• Detailed interpretation package

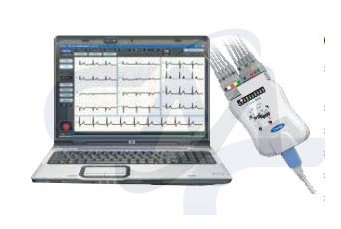

Electrocardiograph (ECG/EKG) machines record the electrical activity of the heart. The Clarity ECG is an extremely portable, low power 12-lead ECG machine. It is designed to operate in conjunction with a laptop or desktop computer, and operates entirely via USB power.

• Innovative high performance sampling device for desktop as well as for Laptop.
• Effective GUI and Aesthetics
• Simultaneous 12 Lead acquisition
• Compact Size and Light weight
• Import True ECG data from other location
• Smooth waveform, No Pixelisation

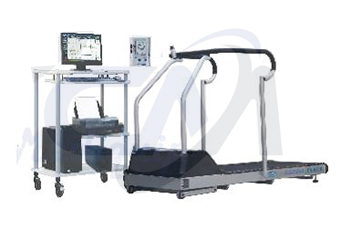

Through innovative technologies and a smart design, Clarity Medical’s cardiac stress testing system, the TrueST, solves common challenges associated with the successful patient data acquisition and interpretation in cardiac stress testing exams. A few of its most notable features include: Source Consistency Filter designed to remove noise and maintain ECG integrity, Examine historical ECG data throughout the exam with real-time full disclosure, and Label, store, print and review events on the fly and include them in final report

• Effective GUI and Aesthetics
• Smooth waveform, No Pixelisation
• Accurate Beat detection and Iso, J point marking & result calculations
• Flexible display windows, user configurable with intuitive interface
• Flexible print pages with total preview
• Wireless communication

Electrocardiograph machines record the electrical activity of the heart. The ECG 50 is a minimalist standalone 12-lead ECG machine offering of Clarity Medical, available in single and dual channel variants.

• Bright LEDs indicate important functions and settings
• LCD Display for parameters
• Auto and Manual operating modes
• Quantitative analysis of tracings
• Integrated rechargeable battery gives more than 100 ECG tracingson full charge
• One button operation

Electromyograph (EMG) machines evaluate and record the electrical activity produced by skeletal muscles. Nerve conduction study (NCS) is used to evaluate the function of the motor and sensory nerves of the human body. Evoked potentials (EPs) are the electrical signals produced by the nervous system in response to an external stimulus. Clarity Medical’s Octopus EMG is an EMG/NCS/EP device capable of conducting up to 17 distinct diagnostic tests.

• The Modular Hardware Concept allows upto 8 amplifier channels
• Specific function keys support the optimal handling during examination and evaluation
• Powerful integrated stimulators
• Integrated operation panel
• Convenient controls and intuitive user interface
• Study cart with arm

Electromyograph (EMG) machines evaluate and record the electrical activity produced by skeletal muscles. Nerve conduction study (NCS) is used to evaluate the function of the motor and sensory nerves of the human body. Evoked potentials (EPs) are the electrical signals produced by the nervous system in response to an external stimulus. The EasyTrace is one of Clarity Medical’s flagship products. It is a 2 channel highly miniaturized and ultraportable EMG/NCS/EP machine. EasyTrace is designed to be used in conjunction with a laptop computer and derives all operating power from USB connection without the need for an external AC power source, making it highly portable.

• USB Operated no need of external power
• Autoatic saving of test files
• Colour coded buttons for easy use
• Robust shock stim handle
• Easy to operate and handle
• Portable and ultra compact in size
• Powerful integrated stimulators

• USB Operated
• Integrated operation panel
• Extremely low noise amplifiers
• Powerful ERG MiniGanz Stimulator
• Easy data base management
• Convenient controls and intuitive user interface
• Automatic saving of test files
• Specific support keys support the optimal
• Handling during examination and evaluation

• Most user-friendly toolbar
• Facility of deleting events and comments
• Online/Offine reformatting of Gain, Filter, Sweep, Speed
• High advanced database management with different searching options
• Operates with PC USB Power
• Integrated SpO2 module

AVAILABLE MODELS :

24 Channels, 32 Channels
